The first reaction: The quality is poor!

But after a thorough investigation, it was discovered that it wasn't the fault of the spring itself. Instead, it was the on-site environment and installation conditions that were continuously "chronically damaging" the sealing system!

I. Four Environmental Factors

1. High temperature + mold dust, continuous wear on seals

Dust adheres to the surface of the piston rod, causing the reciprocating motion to continuously scratch the sealing ring like sandpaper; high temperature accelerates the aging and hardening of the sealing rubber, causing its elasticity to rapidly decline, and gradually leading to slow pressure relief and force value attenuation.

✅ Improvement: Implement dust prevention measures, control temperature rise; use Beibei Kang's special high-temperature-resistant sealing combination + piston rod wear-resistant coating, which can resist dust abrasion and delay sealing aging.

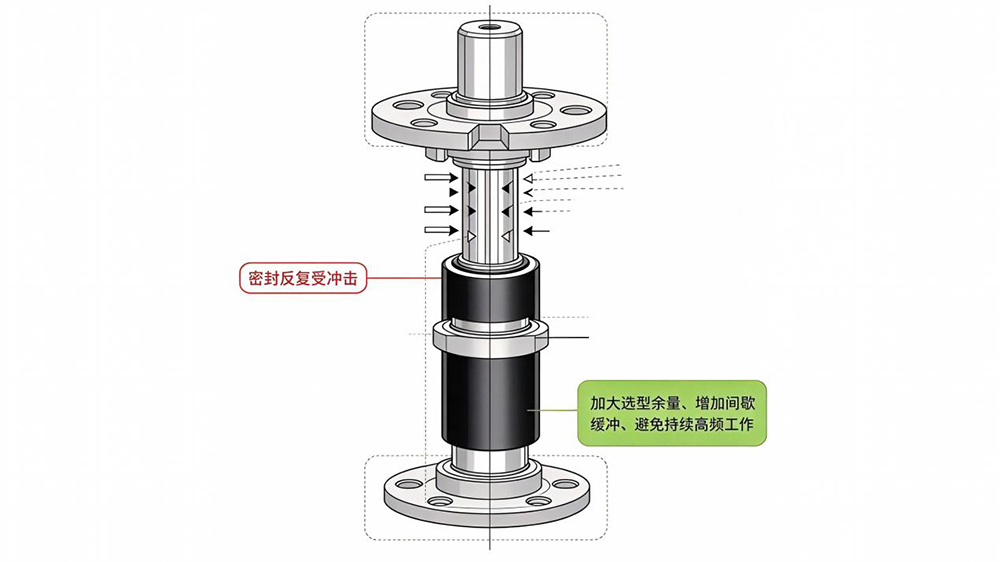

2. Continuous high-frequency impact, repeated impact on the sealing structure

High-speed continuous stamping, with the spring reciprocating every second, the sealing structure continuously withstands high-frequency loads, fatigue accumulates rapidly, and long-term continuous operation without interruption makes the seal prone to fatigue damage.

✅ Improvements:Reserve force margin for high-speed operation scenarios, and add intermittent buffering; The Beibei Kang fatigue-resistant series has optimized the sealing structure for continuous mold high-frequency operations, resulting in stronger impact fatigue resistance.

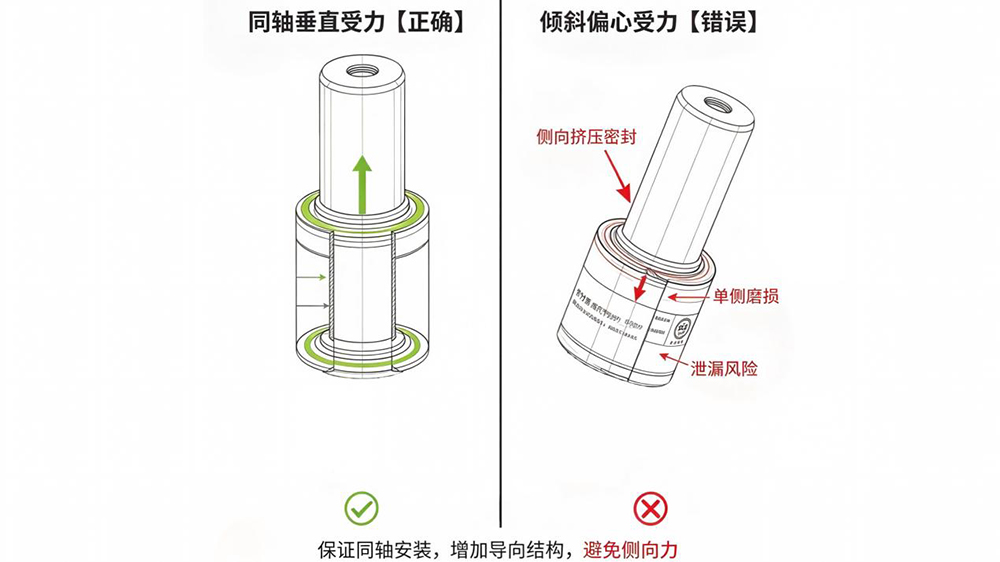

3. Eccentric and inclined force application, lateral force causes unilateral wear and damage to the seal

Installation on different axes or inclined installation results in lateral eccentric force application, causing the piston rod to squeeze the seal member on one side, leading to rapid wear and damage on that side.

✅ Improvement: Ensure the coaxiality is perpendicular during installation, and add a guiding structure to eliminate lateral forces; Beibei Kang provides various flange positioning structures to counteract lateral forces and ensure coaxiality.

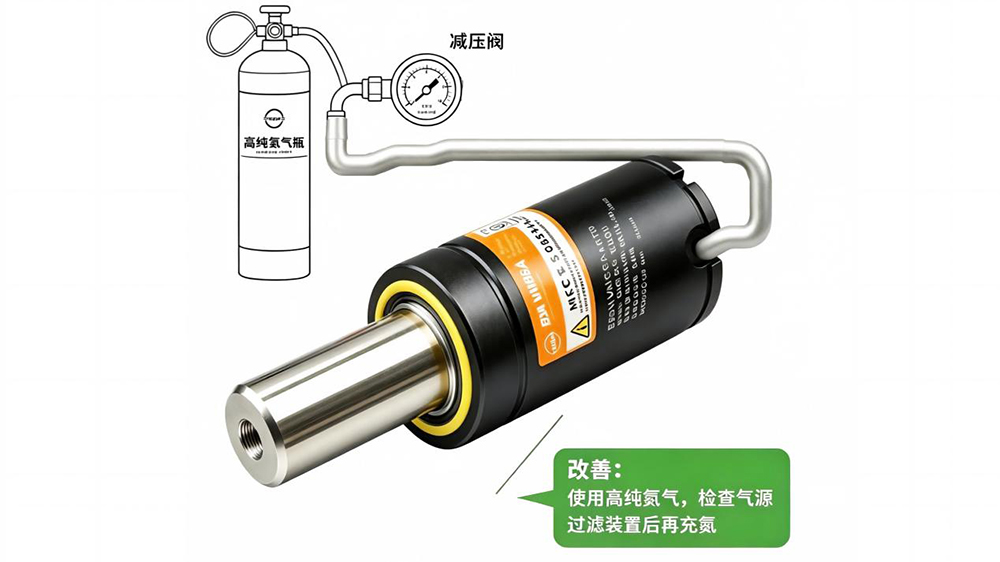

4. Internal corrosion damage caused by filling in impure nitrogen gas

The on-site gas source filtration was not adequate, resulting in the nitrogen gas containing water and impurities. These substances entered the cylinder interior and corroded the inner wall and seals, causing slow internal damage and a gradual decrease in force values.

✅ Improvement: The inflation must use high-purity nitrogen gas, and a filtering device should be installed at the front end of the gas source; all Beibei Kang products are pre-filled with high-purity nitrogen gas and follow standardized inflation testing standards to avoid internal damage.

II. Core advantages of Beibei Kang

1. Composite anti-aging sealing components - resistant to high temperatures and dust abrasion, delaying sealing aging

2. Precision surface treatment of the piston rod - wear-resistant and scratch-resistant, reducing wear during reciprocating motion

3. Precision processing of the cylinder body - suitable for high-speed continuous impact conditions, with longer fatigue life

4. Strict pressure testing at factory + pre-inflation with high-purity nitrogen gas - technical support for matching selection and installation, helping customers avoid working environment pitfalls

💡Summary in one sentence:

The lifespan of nitrogen gas springs depends on both the product itself and the working environment.

Choosing the right product and avoiding environmental pitfalls can double the lifespan and reduce mold downtime losses.

III. Mass Questions and Answers

Q: The force value has decreased. Can it be restored by simply inflating?
A: Check the cause. Simple pressure loss can be returned to the factory for inflation testing; if it is caused by dust or eccentric force resulting in sealing wear, inflation can only be used temporarily and will quickly decrease again, requiring replacement.

Q: The workshop has a lot of dust. How to extend the lifespan?

A:Preferably choose models with dust-proof structures, and regularly clean the iron chips on the surface of the piston rod; select the Beibeikang wear-resistant sealing version to enhance dust resistance.

Q： How to select a model to reduce force value decay in high-speed continuous molds?

A： Reserve margin during selection， do not operate at full load for a long time； try to ensure coaxial installation and reduce lateral force， prioritize choosing Beibei Kang fatigue-resistant high-speed model.

Compilation and organization： Dongguan Beibei Kang Precision Machinery Technology Co.， Ltd.

For more technical exchanges， you can contact： 13620045661/13802381201 Mr. Liu

Have you encountered the situation where nitrogen gas springs have force value decay before reaching their lifespan in your workshop？
